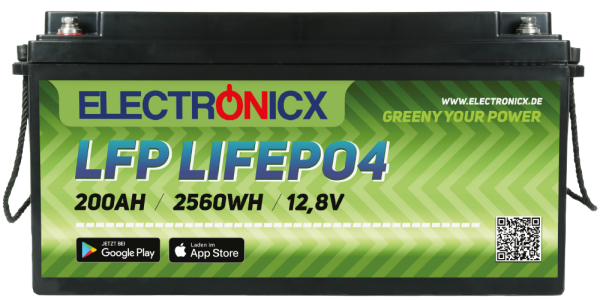

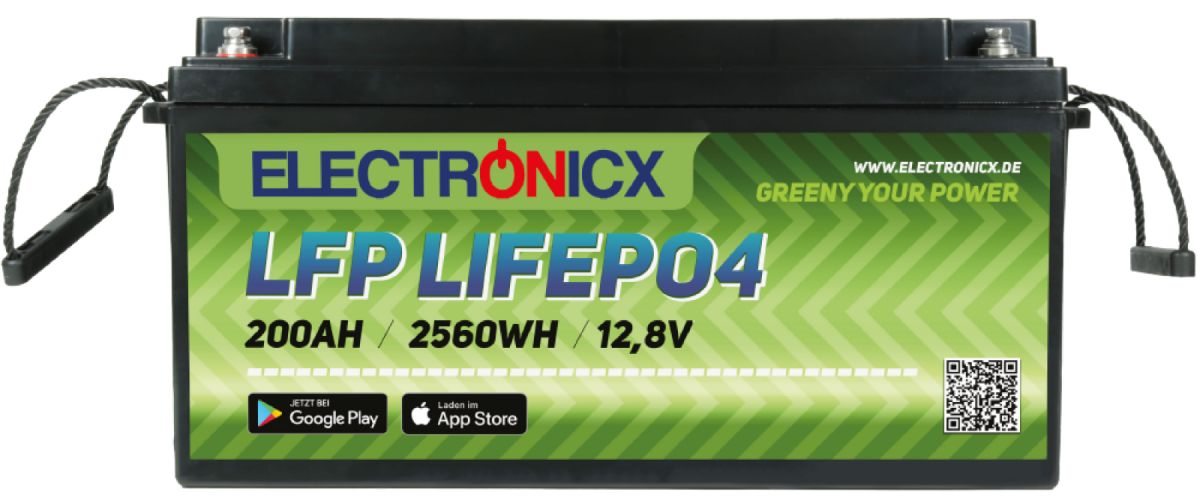

Electronicx LiFePO4 2560Wh 200Ah LFP Bluetooth APP Lithium iron phosphate

699,00 €
incl. 19% VAT , plus shipping costs (Standard)

5-year warranty
DOD 4000 cycles at 80% discharge
Free Android and IOS APP via Bluetooth
200Ah / 100A continuous load 5 seconds 260A / 2560Wh
BMS with protection against: overcharge, deep discharge, reverse polarity, short circuit, overheating, overload
Discharging at -20 to +60 degrees
Charging at 0- +45 degrees
Size 486x170x240mm

Available immediately

Delivery time: 2 - 3 Workdays


The Electronicx LiFePO4 200Ah 12.8 V battery offers technology enthusiasts among us a high level of modern energy supply: the battery management system (BMS) and an app provide all information at a glance. The BMS controls the lithium battery and ensures that the cells are charged and discharged evenly and optimally, thus protecting the LifePo4 supply battery from

-overcharging
-Deep discharge
-Reverse polarity
-Short circuit
-overheating
-overload

The BMS protects the battery from any faults and malfunctions. For example, the battery is switched off in the event of overvoltage, undervoltage or excessive current drain and automatically switched on again as soon as the problem has been rectified.

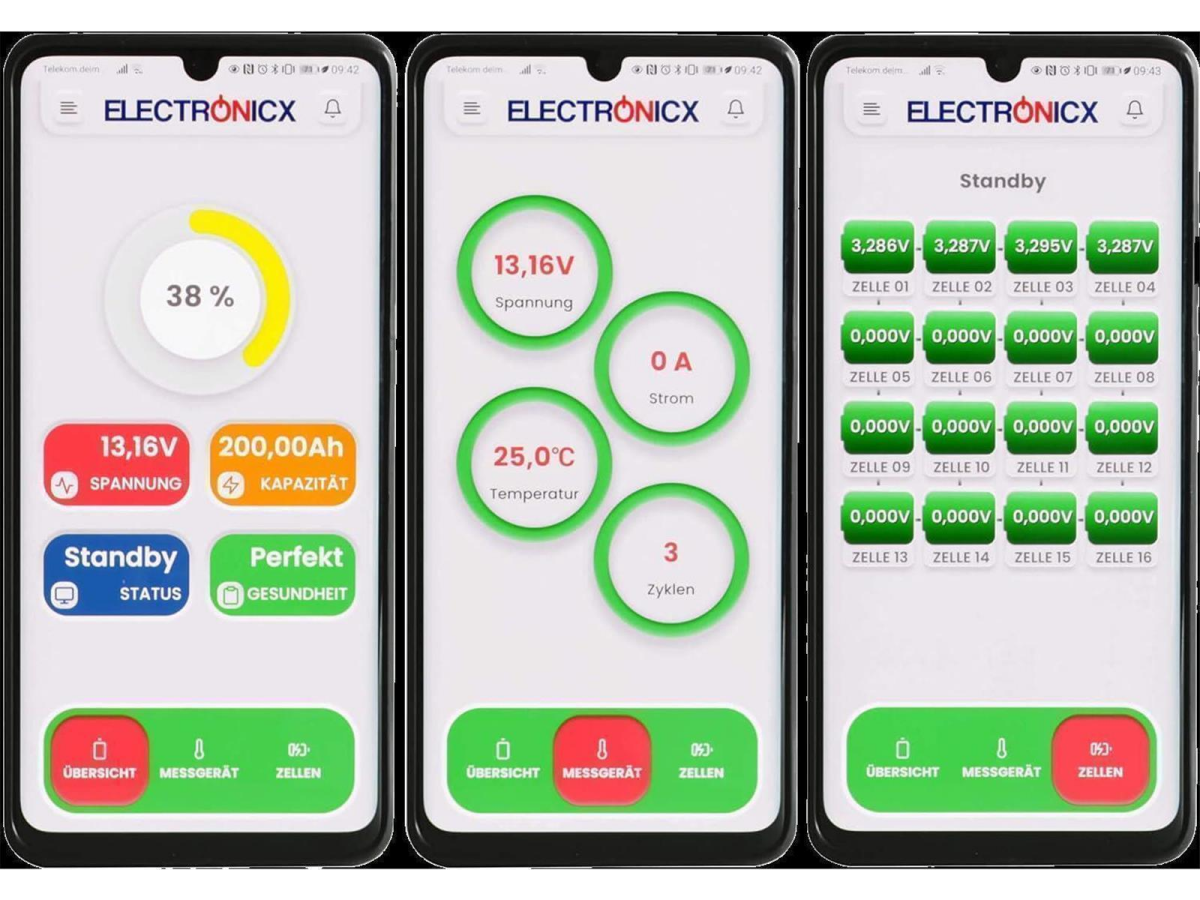

The free app is Android and IOS-compatible and provides an overview of the charge status, current consumption and the condition of the cells. This means you can always keep an eye on the battery and no measurement is necessary.

Bluetooth monitoring at a glance:
Remaining capacity
Battery state of charge in % (SoC)
Nominal / capacity
Battery voltage
Charge / discharge current
Battery temperature

Number of charge and discharge cycles

Compared to conventional lead, gel and AGM batteries, LiFePO4 offers almost twice the capacity. Even with frequent charging and discharging of the battery, this does not lead to a loss of full capacity.

The LiFePO4 replaces up to 2 conventional batteries with its performance, with identical size and up to a quarter less weight!

The combination of lithium, phosphate and iron means that no oxygen is released, making the LiFePO4 an absolutely safe battery! Burning or exploding is not possible.

A significantly longer service life and cycle stability with a noticeably lower self-discharge round off all the advantages of the LiFePO4 battery!

The range of applications for the absolutely safe LiFePO4 lithium battery is incredibly diverse thanks to its low weight and high performance! You can use the LiFePO4 12.8 V battery both in the work area (construction machinery, trucks, coaches and craftsmen's vehicles) and privately. It is ideally suited, for example, as a camping and motorhome battery, as a boat battery, as a supply battery in the garden, for renewable energies and solar systems, photovoltaics and also for sound systems

Technical data:
Capacity (Ah): 200 Ah
Voltage: 12.8 V

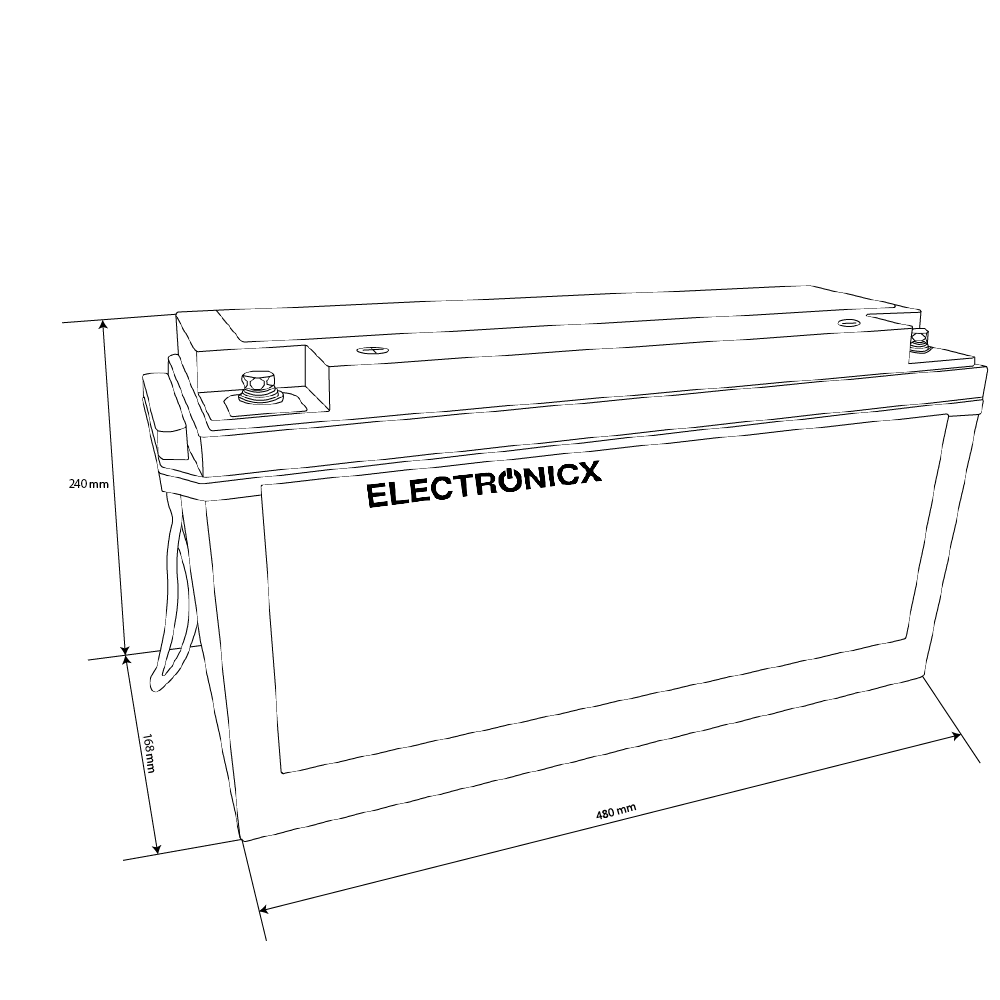

Dimensions: 480 x 240 x 168 mm
Battery capacity: 2560 Wh
Battery technology: LiFePO4 (lithium iron phosphate)
Weight: 21 kg
Battery management system: Yes

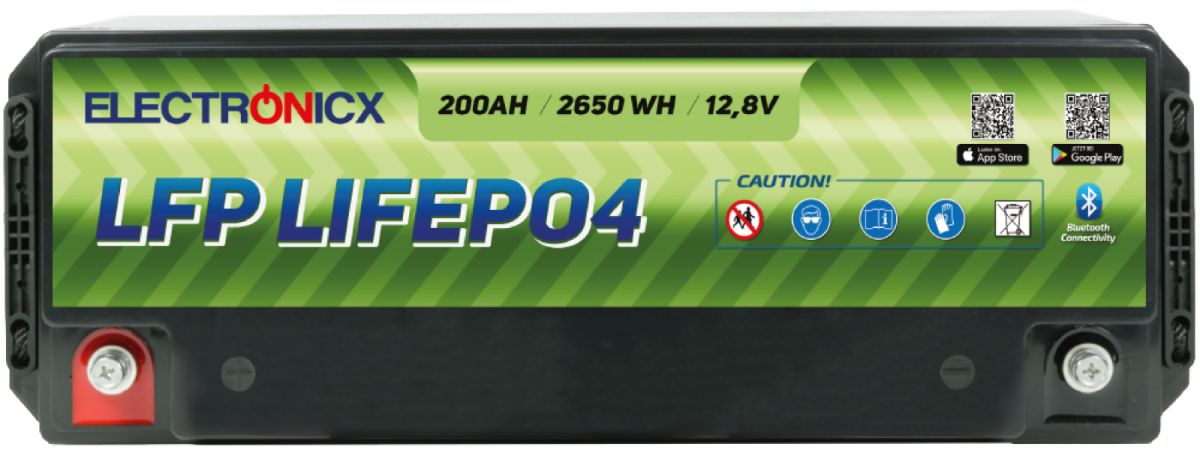

Connection type: M8 thread with screws
Max. Batteries in series: 4
Manufacturer: Electronicx

Manufacturer: Electronicx
Category: LifePO4
SKU: 200Ah-LFP-Bluetooth
GTIN: 4059568028205
Shipping weight‍: 23,50 kg
Item weight‍: 23,10 kg
